LED Off-Road Lights Explained: Every Type and Beam Pattern Compared

Stock headlights are designed to meet federal minimum standards for road use. They're not designed to light up a rocky desert trail outside Moab at midnight or cut through heavy fog on a Pacific Northwest logging road. If you've ever found yourself leaning toward the steering wheel just trying to see what's 80 feet ahead, you already know the gap.

That's why truck owners add LED off-road lights.

But here's where a lot of people get stuck: not all off-road lights are the same thing. There are different physical forms, and within each form there are different beam patterns. Buying a spot beam when you needed a flood, or a light bar when you needed pods, means real money spent on gear that doesn't perform the way you expected. So before you add anything to your cart, it's worth understanding both sides of the equation: what shape the light comes in and where it sends that light.

Light bars are the most visible upgrade in the off-road world, and for good reason. They range from around 6 inches up to 50 inches or more, and they mount on the roof, roof rack, bull bar, or front bumper.

Within that category, there are a few variations worth knowing.

Single-row bars are slimmer and lower-profile, which makes them easier to fit in tight mounting positions like bumper cutouts or A-pillar mounts. Dual-row bars stack two rows of LEDs for significantly higher output, but they're bulkier and usually reserved for roof or rack mounting. Shape matters too: straight bars work well for roof and bumper mounts, while curved bars are designed to follow the roofline contour on full-size trucks, which reduces wind noise at highway speeds.

Raw output is the main reason people choose a light bar. A quality 20-inch dual-row bar puts out more lumens than most other off-road lighting options at that price point. That makes them popular for high-speed desert runs in the Southwest, long night drives on open Midwest two-tracks, and any situation where you need to see as far ahead as possible.

The trade-offs are worth thinking through before you buy. Light bars require proper relay wiring, solid mounting hardware, and a clear understanding of where you'll actually use them. Forward-facing auxiliary lights used on public roads in the U.S. must comply with NHTSA FMVSS No. 108, and most dedicated off-road bars don't meet those on-road requirements. Most states also restrict their use while driving on public highways. On tight technical trails with close tree lines or canyon walls, the wide throw of a large bar can also create significant glare. They're the right tool for specific situations, not a universal answer.

Pod lights are where most builds start. And honestly, where a lot of experienced builders end up staying long-term.

They're compact, usually between 2 and 6 inches, and they mount in more places than any other form factor: front bumpers, A-pillar ditch brackets, grille openings, roof rack rails, bed rail positions, and frame-mounted rock light spots. That flexibility is what sets them apart. A light bar has one or two practical mounting locations on most trucks. A pod can go almost anywhere.

Cube lights are essentially the same concept in a square housing. The terms are often used interchangeably, and for most buyers the distinction doesn't matter much. What matters is output, beam pattern, and build quality.

At WOLFBOX Gear, our NomadRover 5" Off-Road LED Pod Lights are built to handle primary auxiliary lighting on full-size trucks and Jeeps. The optics are designed to put out real, usable light without the eye fatigue that comes from cheaper units running poorly tuned reflectors. For secondary positions, tighter mounting spots, or builds that need fill coverage without adding bulk, our NomadRover 3" Off-Road LED Pod Lights pack solid output into a smaller footprint.

One thing to keep in mind: lower-quality pods can cause radio frequency interference with in-cab electronics. Look for units that meet SAE J581 auxiliary lamp standards to avoid that headache on the trail.

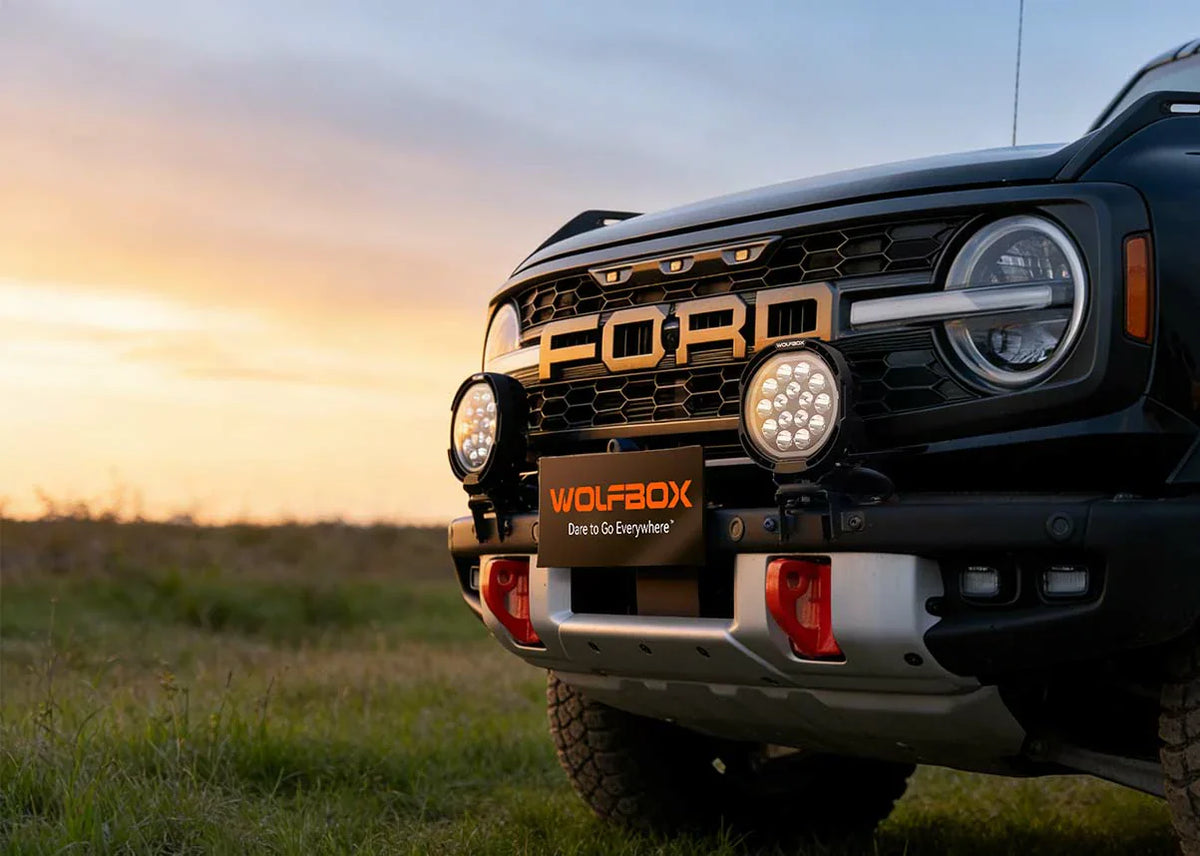

Round off-road lights, typically in 4-inch, 7-inch, or larger diameters, are a popular choice for Jeep Wranglers, Ford Broncos, classic pickups, and any rig that already runs round housings. The 7-inch format is particularly practical for Wranglers and older Broncos because it drops directly into the stock headlight buckets, which keeps the install clean and simple.

For trucks without round housings, builders mount them on the front bumper or in A-pillar positions. They put out solid output and look right on a lot of builds. They generally won't match the total lumen count of a comparably sized dual-row light bar, but for many rigs that's not the priority. Fitment and aesthetics often drive the decision here just as much as raw output.

Rock lights are small, low-mounted LEDs that go near the running boards, frame rails, or wheel wells. They're not trail lights in the traditional sense. What they do is illuminate the ground directly below and beside the truck, which makes a serious difference during slow-speed night crawling, parking on uneven terrain, and moving around camp after dark.

Most rock lights run a wide flood pattern, draw very little power, and carry IP67 or IP68 waterproof ratings because they sit low on the vehicle and take constant hits from mud, standing water, and trail debris. Once you've run them, it's hard to go back to fumbling around in the dark with a headlamp.

Now that you know the physical forms, the next decision is beam pattern. This is where a lot of buyers go wrong. You can have a well-built light in a well-chosen form factor, and still end up frustrated because the beam doesn't match your terrain.

There are four main patterns.

A spot beam focuses light into a tight, long-range cone. Quality spot pods can push usable light 300 to 500 feet down the trail, depending on output. That makes them the right call for high-speed runs on open desert washes, straight canyon roads, or any situation where you need to see obstacles well before you reach them.

The trade-off is narrow coverage. Spot beams don't help much at close range or off to the sides. On slow rock crawls or at camp, a spot beam alone leaves a lot of ground literally in the dark.

Flood beams spread light wide, generally between 60 and 120 degrees, but they sacrifice distance to do it. They're built for close-range area coverage: camp lighting, slow technical crawling, reversing in the dark, and lighting up what's right next to your tires on a tight shelf road.

If you've ever tried to back a trailer into a campsite with only headlights, you know exactly what a flood beam solves.

The limit is reach. A flood won't give you meaningful distance visibility, so on faster trails or open terrain, it works better as a supplement to a spot or combo setup than as your only light source.

Fog beams are a specialized pattern that most off-road buyers don't think about until they need them. They project a wide, low beam angle with a sharp horizontal cutoff at the top. That cutoff is the key: it keeps the light from bouncing off precipitation, dust, or smoke back into your eyes.

For desert runners dealing with blowing dust in the Southwest or trucks wheeling through early morning mist on mountain roads in the Rockies or Appalachians, a dedicated fog beam makes a real difference in visibility. It's not a substitute for your primary lighting. Think of it as a situational layer you add for specific conditions. For most builds, fog coverage is either handled by the vehicle's factory fog lights or by a wide flood pod running low on the bumper. A dedicated fog beam pattern light is most useful if you regularly drive in low-visibility precipitation or heavy trail dust.

Combo beam pods split the difference. They run a focused central spot for distance with an outer flood spread for close-range and peripheral fill, all in a single housing. For most truck owners, this is the practical starting point.

You get reach and width without needing two separate pods per mounting position. The coverage won't be as specialized as a dedicated spot or flood, but it handles the broadest range of trail situations without forcing you to plan a complex multi-light setup from day one.

Not sure where to start? Combo is almost always the right first choice.

Understanding forms and patterns separately is one thing. The real value is knowing how to put them together for your actual driving situation.

For high-speed open terrain like Baja-style desert runs, Nevada dry lake beds, or straight dirt roads across the Midwest, reach matters most. A dual-row straight light bar or a pair of 5" spot pods mounted up high gives you the distance vision that those environments demand.

For technical rock crawling in tight canyons, flood coverage close to the truck is what you actually need. A pair of flood pods on the bumper corners or a set of rock lights under the frame rails does more useful work than a roof-mounted bar that throws light 400 feet ahead when you're moving at 2 mph.

For mixed-use builds that do a bit of everything, a combo pod as your primary light and a flood pod in a secondary position covers most situations without overcomplicating the setup.

For a full-size F-150, Silverado, or Tundra, the NomadRover 5" handles primary duty well. Add NomadRover 3" pods in the ditch or A-pillar positions for wide fill coverage, and you've got a complete setup without the complexity of running a full light bar.
